Commercial properties across Raleigh — from the office parks along Glenwood Avenue to the mixed-use developments sprouting up near North Hills — are moving fast away from traditional key-based entry. Keypad, fob, and card-reader systems give building owners and property managers something a brass key never could: a precise, auditable record of who entered, when, and through which door. At Raleigh Pro Locksmith, our trained and insured technicians handle the full scope of access control system installation for commercial buildings throughout the Triangle, arriving mobile and fully equipped so there's no waiting on parts or a shop visit.

Call (919) 324-1731Get a fast quote

Open 24 hours, 7 days a week · Licensed, bonded & insured

“

Whether you manage a single-suite professional office, a multi-tenant retail strip, or a warehouse with a half-dozen controlled entry points, the right electronic access control setup can eliminate rekeying costs, reduce liability, and give your team frictionless, credential-based entry. We work with the hardware, the wiring, the door prep, and the mortise lock hardware all in one visit — so you're not coordinating between an electrician, a general contractor, and a locksmith separately. One call to (919) 324-1731 puts a qualified technician on the way to your location.

What we do

Available 24/7

Day, night, weekends and holidays — a real local locksmith answers and rolls a fully-stocked van.

Fast local response

Based in Raleigh, we reach the Raleigh area in well under an hour.

Insured & background-checked

Vetted technicians, up-front pricing, and no surprise add-ons when we arrive.

Damage-free entry

We pick and bypass locks the right way, so most lockouts are solved without drilling anything.

01

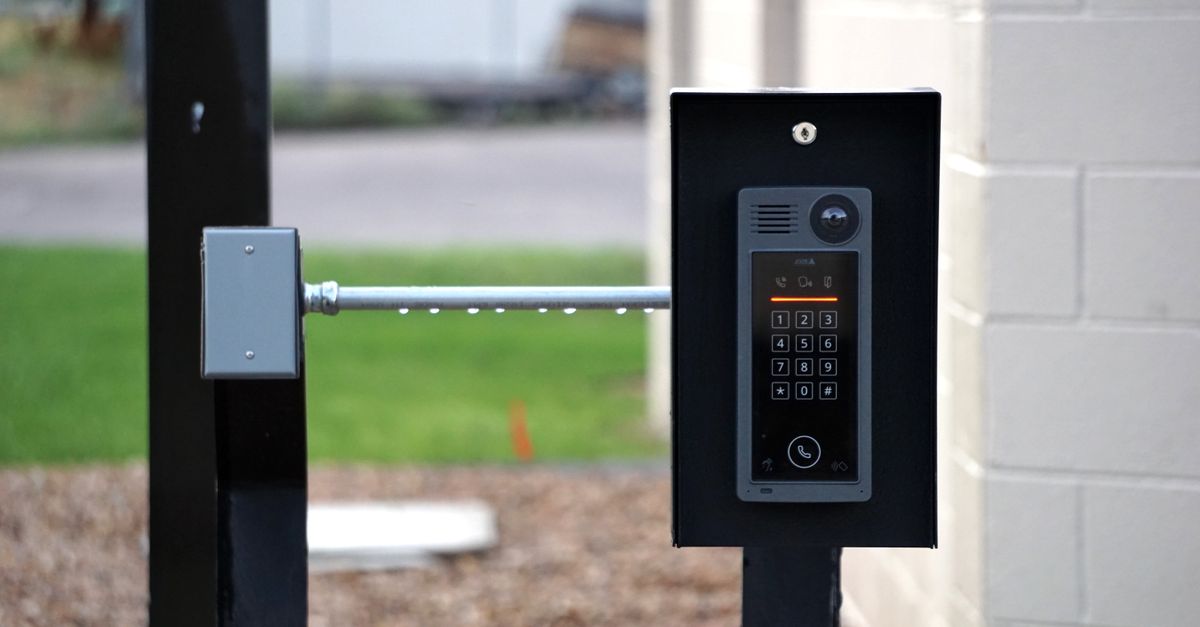

What Access Control Installation Actually Involves at the Door Level

Most conversations about access control focus on the software dashboard or the credentials — the app, the fobs, the cards. What gets less attention is the mechanical foundation: the lock hardware itself. A proper commercial access control mortise lock is the workhorse behind the credential reader. Unlike a cylindrical lockset, a mortise lock body is mortised (recessed) into the door edge, giving it the structural strength and internal complexity to house electrified components — latchbolts, deadbolts, request-to-exit sensors, and auxiliary switches — all in one unit. When our technicians spec an access control mortise lock for your building, they're selecting hardware rated for the door's fire and egress requirements, the traffic volume, and the level of forced-entry resistance you need. Getting this layer right means the electronic credential system above it actually performs reliably for years.

Door prep matters just as much as hardware selection. We assess the door frame, the strike pocket, the hinge reinforcement, and the closer to confirm the door operates squarely before any electronic hardware is installed. A misaligned door puts mechanical stress on an electrified mortise lock that shortens its service life significantly. Our goal is a damage-free installation wherever the existing door and frame allow — meaning we work with the structure rather than forcing hardware to fit. When modifications are required, we explain exactly what's needed and why before any cutting or drilling begins.

02

Credential Types: Keypads, Key Fobs, and Card Readers Compared

Choosing between a keypad, a proximity fob system, or a smart card reader isn't just about preference — it's about the workflow of the people using the door every day. Keypads are straightforward for low-traffic entries where you want no physical credential to issue or manage: a PIN code is enough. They're common on interior server rooms, storage areas, and secondary exits at Raleigh office buildings where a handful of staff need occasional access. The trade-off is that codes get shared, and auditing who used a code is harder than tracking a unique credential.

Key fobs and card readers solve the audit problem. Each fob or card carries a unique identifier that the access control panel logs every time it's presented. If an employee leaves your company, you deactivate that credential in the software — no rekeying, no lock change, no lockout drama. Proximity cards (HID, for example) and mobile credentials via Bluetooth or NFC are increasingly common in the newer commercial builds going up around Downtown Raleigh and the Warehouse District. Our technicians are experienced with multi-door, multi-reader installations and can integrate new readers into an existing panel or deploy a complete new system — whatever your building's current state of wiring and infrastructure supports.

03

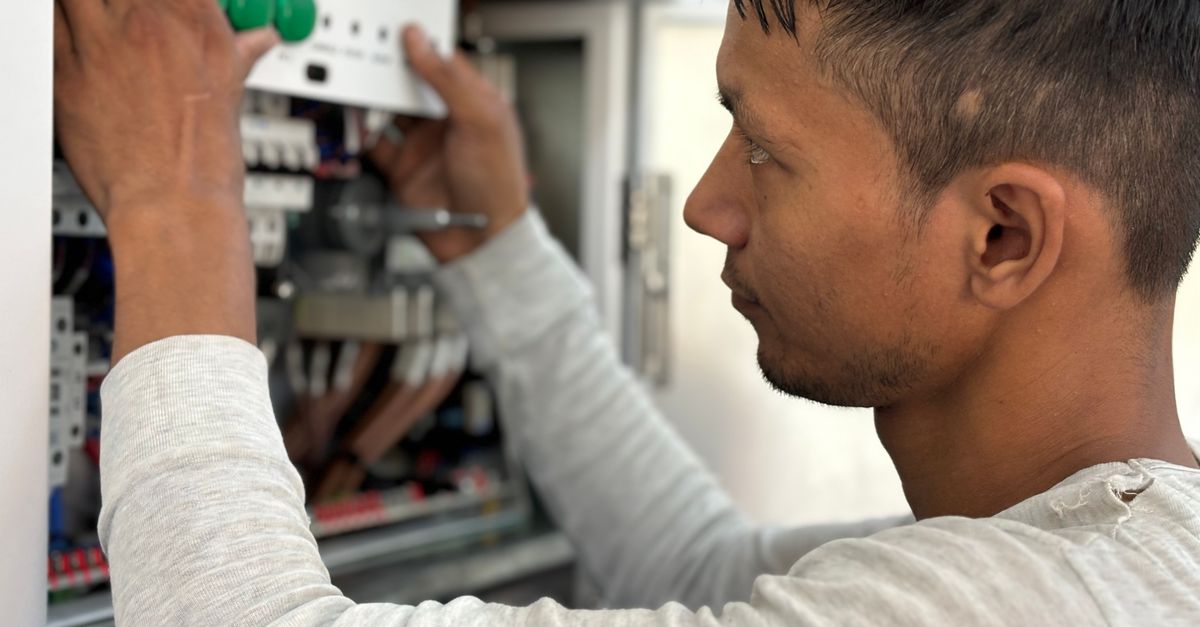

Access Control System Installation: Our Process from Assessment to Handoff

Every access control system installation we do starts with a site walk, not a sales pitch. A technician visits your building, maps the entry points, reviews the existing door hardware and wiring, and identifies any code or egress considerations — particularly important in North Carolina, where commercial doors on certain egress paths must meet specific free-egress requirements even when controlled electronically. From that assessment, we put together a clear scope of work with hardware recommendations and a firm price quote before a single tool comes out. You'll know the exact cost up front, confirmed in writing, so there are no surprises on the invoice. Pricing for commercial access control system installation varies widely based on the number of doors, the hardware tier, the wiring complexity, and whether an existing system is being expanded or replaced — typical single-door installations in the Raleigh market run roughly in the $400–$1,200 range for parts and labor combined, but that figure can shift significantly based on your specific situation.

Once the scope is agreed, our mobile technicians carry the hardware to your site — we come to you, fully stocked, so installation usually happens in a single visit. After installation, we walk your designated administrator through the credential management software, show you how to add and deactivate users, and confirm every reader and lock function before we leave. We don't consider the job done until you're confident operating the system independently.

04

Access Control System Repair and Replacement: When Something Goes Wrong

Electronic access control doesn't fail often, but when it does, it tends to fail at the worst possible time — early morning before staff arrives, or late at night when a closing manager can't get out cleanly. Because Raleigh Pro Locksmith operates 24/7, a trained technician is available to diagnose and repair a malfunctioning access control system at any hour. Common issues we see include failed electrified mortise lock solenoids, wiring faults between the reader and the panel, credential readers that have lost their programming after a power surge, and door alignment problems that prevent the latch from retracting cleanly under power.

Access control system replacement becomes the right call when a panel is obsolete, when a building changes ownership and the credential database needs to be wiped clean, or when an older wired system simply can't support the credential types your business now requires. We handle full rip-and-replace projects as well as hybrid upgrades — for example, keeping a functional wiring infrastructure while swapping out legacy readers for modern contactless units. If you're unsure whether repair or replacement makes more sense for your situation, call us at (919) 324-1731 and we'll give you an honest assessment based on what the hardware is actually doing, not on what generates the larger ticket.

05

Services Included in Our Commercial Access Control Work

Raleigh Pro Locksmith provides a comprehensive range of access control and related locksmith services for commercial clients, including: electrified mortise lock supply and installation; cylindrical electronic lock installation; electromagnetic lock (mag-lock) installation on aluminum storefront doors; exit device (panic bar) electrification and installation; door closer supply and installation; electric strike installation and adjustment; proximity card reader installation (single and multi-door); keypad access control installation; Bluetooth and mobile credential reader setup; key fob system programming and credential enrollment; access control panel installation and configuration; access control system wiring and low-voltage rough-in; credential database setup and administrator training; door alarm integration with access control panels; video intercom integration at controlled entries; request-to-exit (REX) sensor installation; door position switch (DPS) installation; access control system repair and fault diagnosis; access control system replacement and panel upgrades; rekeying of mechanical cylinders within electrified locks; master key system design alongside electronic access control; after-hours lockout response for malfunctioning access control doors; power supply and battery backup installation for access control panels; ADA-compliant hardware consultation and installation; and on-call 24/7 emergency locksmith response for all commercial access control issues.

Frequently asked questions

What is an access control mortise lock and do I need one for my commercial building?+

An access control mortise lock is a lock body that's recessed into the edge of a door and designed to house electrified components — typically a solenoid or motor that controls latch or deadbolt retraction in response to a credential reader signal. Most commercial-grade electronic access control systems use mortise lock hardware because it's stronger, more reliable under heavy traffic, and supports a wider range of functions than a cylindrical lock. Whether you need one depends on your door type, traffic level, and the access control system being installed. Our technicians will assess your doors and recommend the appropriate hardware during the initial site evaluation.

How much does access control system installation cost in Raleigh?+

Costs vary considerably based on the number of entry points, the hardware tier (basic keypad versus a multi-reader networked system), whether existing wiring can be reused, and the condition of the door hardware. As a general reference, a single-door installation in the Raleigh area might run roughly $400–$1,200 for parts and labor, while multi-door commercial systems can run several times that. These are estimates only — we always provide a firm, confirmed price before any work begins so you know exactly what you're approving. Call (919) 324-1731 to schedule an on-site assessment and get an accurate quote for your building.

Can you repair an access control system that's malfunctioning without replacing the whole thing?+

Yes, in many cases. Common problems — a failed solenoid in the mortise lock, a wiring fault between a reader and the panel, a reader that lost its programming after a power event — are repairable without replacing the full system. We diagnose the issue first and tell you honestly whether a targeted repair is the right call or whether the hardware is too far gone to be cost-effective to fix. Because we're available 24/7, we can respond to access control system repair calls at any hour, including after-hours failures that are blocking staff from entering or exiting your building.

How long does a typical commercial access control installation take?+

A single-door installation where the door prep is straightforward typically takes two to four hours from start to administrator training. Multi-door installations vary based on how much wiring needs to be run and whether the panel location requires significant low-voltage rough-in work. We give you a time estimate as part of the pre-installation scope so you can plan for any workflow disruption. Our technicians arrive mobile with the necessary hardware and tools, so there's rarely a reason for a second visit on a standard installation.

What happens to existing credentials and user access when I replace an old access control system?+

A full access control system replacement means starting the credential database fresh, which is actually one of the security benefits of a replacement — particularly for buildings that have changed ownership or management, or where the previous credential list wasn't well maintained. Our technicians handle the panel swap, help you set up the new system, and walk your administrator through enrolling the first round of users. Any fobs or cards tied to the old system won't work on the new hardware, so plan to issue new credentials to all authorized users at the time of replacement.

Do you handle access control for buildings with multiple suites or tenants?+

Yes. Multi-tenant access control is one of the more common commercial projects we handle in Raleigh. The typical setup involves a main building entry controlled by the system, with individual suite entries either on the same panel with segregated credential groups or on separate sub-panels depending on the building's layout and the tenants' privacy needs. We map out the full door schedule during the initial assessment, identify any shared egress paths that need to remain free regardless of credential state, and configure the system so each tenant's administrator can manage their own users independently if needed. Call us at (919) 324-1731 to discuss your building's specific layout.
